Cargo Van - V2 Series Repair Parts

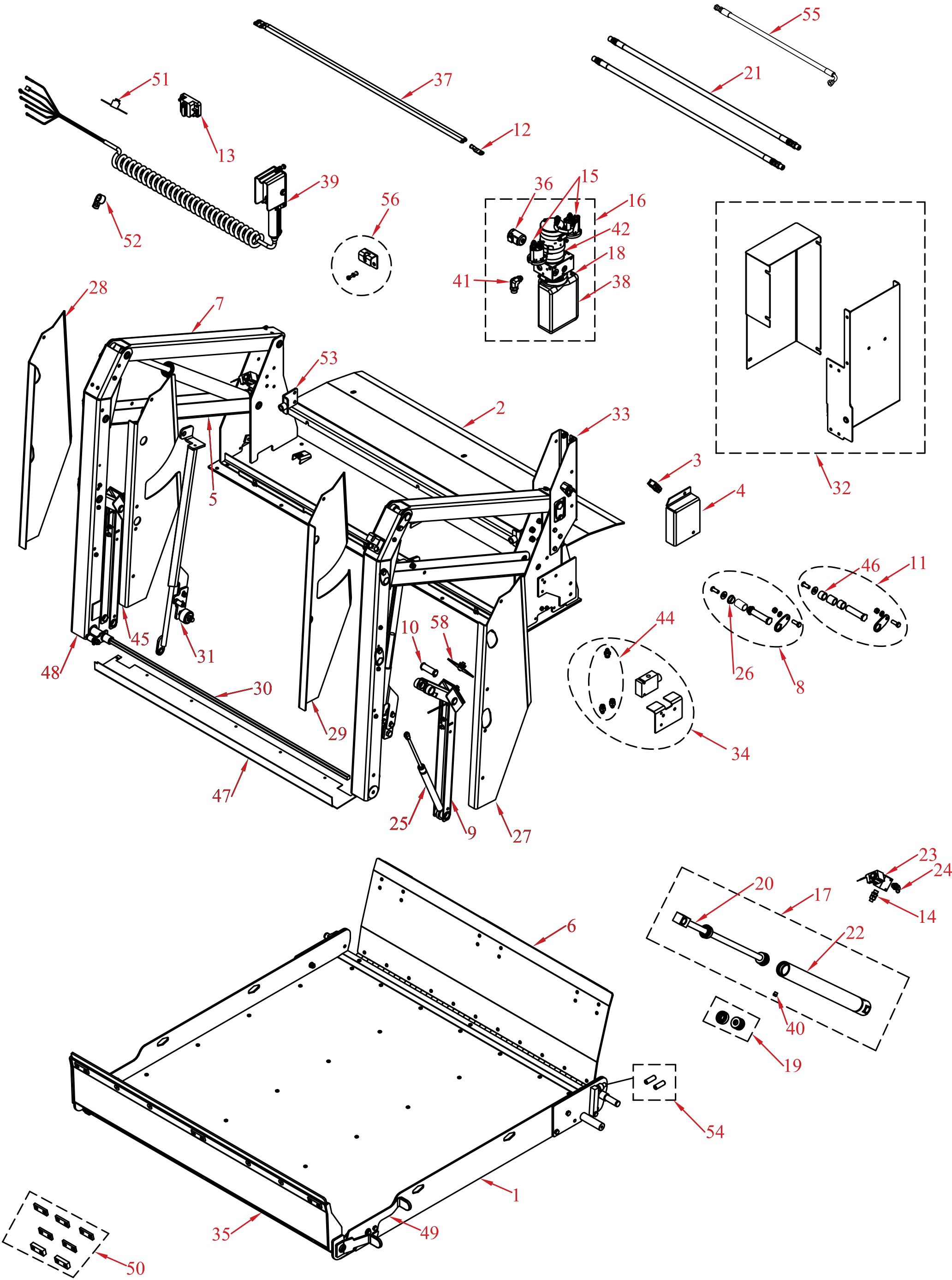

Select a part reference number, right.

Drawing Reference:  1

  016134

49 FA Replacement Platform

Qty Required: 1
  016133

34 FA Replacement Platform

Qty Required: 1

Drawing Reference:  2

  016052

Replacement Cover Sheet

Qty Required: 1

Drawing Reference:  3

  000930

Replacement Rail Safety Switch

Qty Required: 2

Drawing Reference:  4

  016053

Replacement Limit Switch Cover

Qty Required: 2

Drawing Reference:  5

  016126

Replacement Lower Arm

Qty Required: 2

Drawing Reference:  6

  016054

Replacement Threshold Bridge

Qty Required: 1

Drawing Reference:  7

  016127

Replacement Upper Arm

Qty Required: 2

Drawing Reference:  8

  016128

Replacement Upright Pin

Qty Required: 6

Drawing Reference:  9

  016130

Replacement Fold Link Assembly

Qty Required: 2

Drawing Reference:  10

  016055

Replacement Fold Link Pin

Qty Required: 2

Drawing Reference:  11

  016129

Replacement Upper Arm Pin

Qty Required: 4

Drawing Reference:  12

  000992

Replacement Copper Lug

Qty Required: 6

Drawing Reference:  13

  000998

Replacement 150 Amp Manual Reset Circuit Breaker

Qty Required: 1

Drawing Reference:  14

  016056

Replacement Cylinder Straight Fittings

Qty Required: 1

Drawing Reference:  15

  000995

Replacement Solenoid - 4 Post (650)

Qty Required: 1

Drawing Reference:  16

  016131

Replacement V2 Pump and Motor

Qty Required: 1

Drawing Reference:  17

  015876

Replacement V2 Cylinder

Qty Required: 2

Drawing Reference:  18

  000989

Replacement Vent Plug

Qty Required: 1

Drawing Reference:  19

  015880

Seal Repair Kit

Qty Required: 2

Drawing Reference:  20

  015877

Replacement Cylinder Shaft

Qty Required: 2

Drawing Reference:  21

  016057

Replacement V2 Hydraulic Hose (96")

Qty Required: 2
  016744

Replacement V2 Hydraulic Hose (74")

Qty Required: 2

Drawing Reference:  22

  016132

Replacement Cylinder Barrel Kit

Qty Required: 2

Drawing Reference:  23

  016058

Replacement Cylinder Lock

Qty Required: 2

Drawing Reference:  24

  016059

Replacement Cylinder Lock Elbow - 45 degrees

Qty Required: 2

Drawing Reference:  25

  016083

Replacement Damper

Qty Required: 1

Drawing Reference:  26

  016084

Split Metal Bushing Replacement Kit

Qty Required: 1

Drawing Reference:  27

  016085

Replacement Passenger Side Outside Plastic Sheild

Qty Required: 1

Drawing Reference:  28

  016086

Replacement Driver Side Outside Plastic Shield

Qty Required: 1

Drawing Reference:  29

  016087

Replacement Passenger Side Inside Plastic Shield

Qty Required: 1

Drawing Reference:  30

  016172

FA49 Replacement Torsion Spring Kit

Qty Required: 1
  016173

FA34 Replacement Torsion Spring Kit

Qty Required: 1

Drawing Reference:  31

  016104

Replacement Threshold Bridge Guide Kit

Qty Required: 1

Drawing Reference:  32

  016105

Replacement Pump Box Kit

Qty Required: 1

Drawing Reference:  33

  016106

Replacement Pump Box Bracket

Qty Required: 1

Drawing Reference:  34

  016107

Replacement Flow Divider

Qty Required: 1
  016799

Replacement V2 Flow Divider (Sun Hydraulics)

Qty Required: 1

Drawing Reference:  35

  016109

Replacement Retention Ramp (FA 49)

Qty Required: 1
  016108

Replacement Retention Ramp (FA 34)

Qty Required: 1

Drawing Reference:  36

  002727

Replacement Release Solenoid External Assembly w/Connector

Qty Required: 1

Drawing Reference:  37

  016110

Replacement 4GA. 2 Wire Electric Cable 30 ft.

Qty Required: 1

Drawing Reference:  38

  002728

Replacement Tank

Qty Required: 1

Drawing Reference:  39

  015998

V2 Replacement Timed Control with Shift Button

Qty Required: 1

Drawing Reference:  40

  000979

Replacement Vent Plug - Cylinder

Qty Required: 2

Drawing Reference:  41

  016111

Replacement Pump Elbow, 90 Degrees

Qty Required: 1

Drawing Reference:  42

  001495

Replacement Motor (only)

Qty Required: 1

Drawing Reference:  44

  016112

Replacement Flow Divider Fitting

Qty Required: 1

Drawing Reference:  45

  016088

Replacement Driver Side Inside Plastic Shield

Qty Required: 1

Drawing Reference:  46

  016113

Replacement Upper Arm Bushing Kit

Qty Required: 1

Drawing Reference:  47

  016114

Replacement Torsion Spring Cover

Qty Required: 1

Drawing Reference:  48

  016115

Replacement Vertical Arms (Right and Left)

Qty Required: 1

Drawing Reference:  49

  016116

Replacement Platform Taper Latch

Qty Required: 1

Drawing Reference:  50

  016117

Replacement Platform Bumper Kit

Qty Required: 1

Drawing Reference:  51

  016119

Replacement Control Fuse

Qty Required: 1

Drawing Reference:  52

  016120

Replacement Control Cord Clamp Kit

Qty Required: 1

Drawing Reference:  53

  016178

Replacement FA49 Platform Stop Kit

Qty Required: 1
  016179

Replacement FA34 Platform Stop Kit

Qty Required: 1

Drawing Reference:  54

  016295

Replacement Platform Tilt Set Screw Kit

Qty Required: 1

Drawing Reference:  55

  012931

Replacement Hydraulic Hose-Pump- Flow Divider

Qty Required: 1
  012927

Replacement Hydraulic Hose-Flow Divider 75" (For Relocation Pump)

Qty Required: 1

Drawing Reference:  56

  016135

Replacement Pendant Control Bracket

Qty Required: 1
