The Internal Van Lift

Low-capacity, compact, and internally-mounted, the 650 Series is the ideal liftgate for lightweight van applications. 650 Series models fold up and store out of the way of ordinary tasks or flat against the inside of the rear door. Fold-away interior mount offers two secure storage positions and easy access to the rear of the van.

Liftgate Capacity
Liftgate Capacity Icon

650 lbs.

Hydraulic System
Hydraulic System Icon

Single-Cylinder

Van Lift Location
Van Lift Location Icon

Internally-Mounting

650 Series Features

Fold-away interior mount offers two secure storage positions and easy access to the rear of the van.

650 Series Overview Image A 650 Series Overview Image B
Steel Bridge Image
Steel Bridge

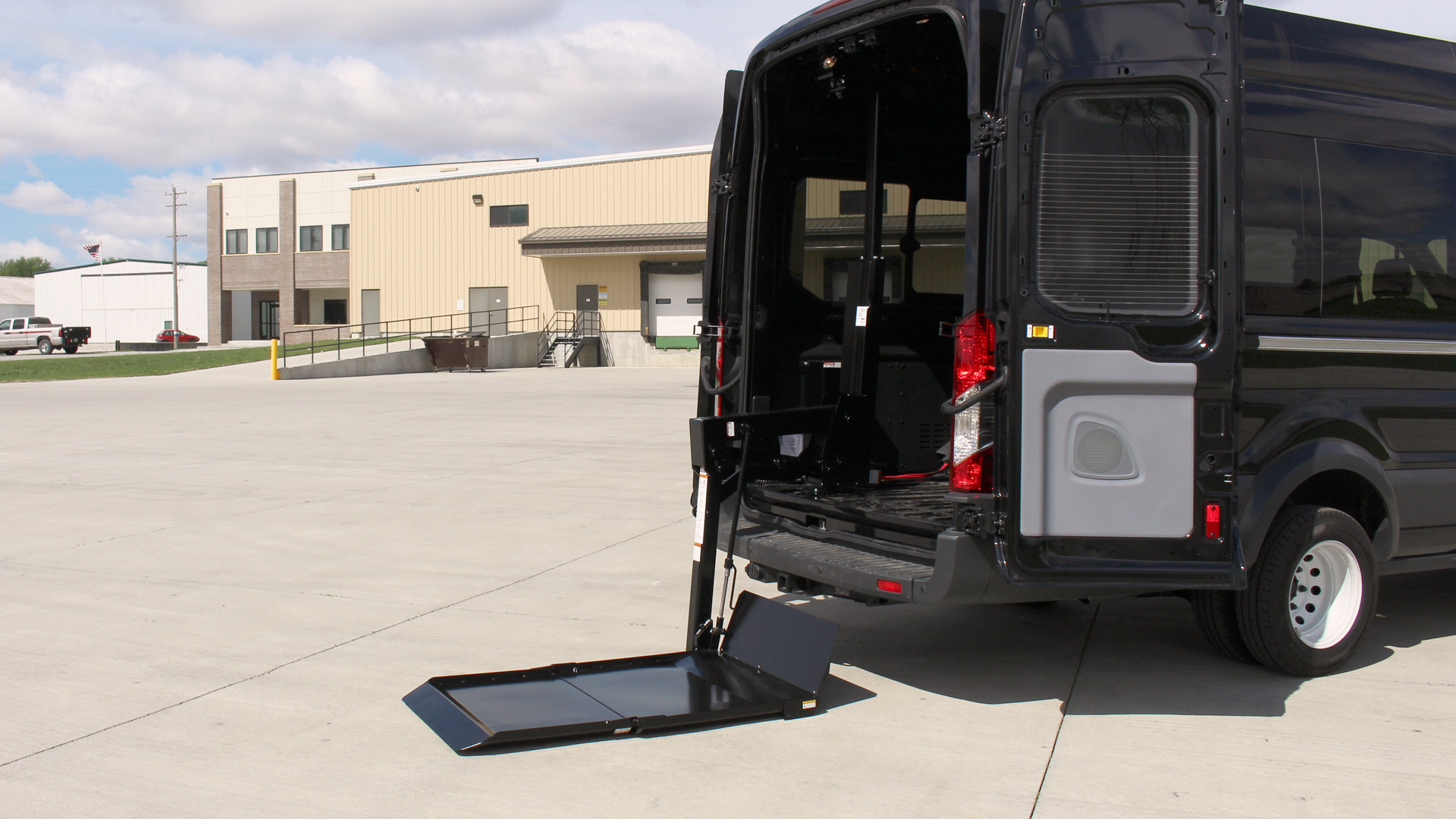

An automatically-deploying steel bridge spans the gap between platform and van body when the lift is in the loading position.

Low-profile Storage Image
Low-profile Storage

The lift stores near the rear of the van, maximizing the useable space of the truck's interior.

  All Models

Model Capacity Load Area Taper Travel Weight Applications Spec
650 650 30  x  39 4 31.5 345 A, B, C, D, E

= Guaranteed Stock Model. Learn More.

  1. If installing Model 650 in a van with rear air conditioning, contact the factory for additional mounting information.
  2. 2007-present SPRINTER® models may be equipped with a rear step bumper that is not compatible with a Model 650 liftgate.
  3. The 650 Series application for the 2014-2015 FORD TRANSIT CONNECT CAN NOT rotate inward and store against the driver side wall.

  Applications & Brackets - Cargo Van

Code Manufacturer Model Year Body Style Bracket Install
C Dodge / Ram 2014 - 2017 Promaster (High Roof) 13498
C Dodge / Ram 2014 - 2017 Promaster (Standard Roof) 13080
C Dodge / Ram 2015 - 2017 Promaster City 14502
A Dodge / Ram 2002 - 2003 B-Series - Standard Body 2417
A Dodge / Ram 2002 - 2003 B-Series - Extended Body 2417
A Ford 2002 - 2014 E-Series 2408
C Ford 2010 - 2013 Transit Connect 10179
C Ford 2014 - 2017 Transit Connect* (see note) 13694
C Ford 2015 - 2017 Transit (High Roof) 13914
C Ford 2015 - 2017 Transit (Medium Roof) 14012
C Ford 2015 - 2017 Transit (Low Roof) 13821
B Sprinter 2002 - 2006 Standard Roof 2397
B Sprinter 2002 - 2006 High Roof 2398
D Sprinter 2007 - 2017 Standard Roof 2632
D Sprinter 2007 - 2017 High Roof 2633
C Nissan 2013 - 2017 NV200 13319
E Chevrolet / GMC 2002 - 2005 Astro / Safari 2400
E Chevrolet / GMC 2002 - 2017 Express / Savana 2410
E Chevrolet / GMC 2015 - 2017 City Express 13319

 Available Platforms

650 Two-piece Smooth Steel w/ 39" loading depth + 4" taper

650 Series 650 Open 650 Series 650 Closed

  Standard Features

Power Cable w/ Full Length Ground Image
Power Cable w/ Full Length Ground

ensures consistent power supply

150-amp Circuit Breaker Image
150-amp Circuit Breaker

protects vehicle's electrical system, disconnects power for repairs

  Available Options

Rubber Platform Bumpers Image
Rubber Platform Bumpers

protects platform from scratching (sets of four or six)

Grip-style Tape Kit Image
Grip-style Tape Kit

for smooth steel platforms (2002 and older)

Documents

  650 Series

Document Name Size Download
650 Series Owner's Manual 1217kb
Warranty Guidelines 506kb
Cargo Van - 650 Series Parts List 111kb
Cargo Van - 650 Series Dimensions 21kb
Cargo Van - 650 Series Platform Dimensions 46kb
Electrical Guidelines 14kb
Estimated Installation Times 452kb
650 Series Mounting Instructions (Chevy Astro/GMC Safari) 450kb
650 Series Mounting Instructions (Ford-E-Series) 450kb
650 Series Mounting Instructions (Chevy Express/GMC Savana) 451kb
650 Series Mounting Instructions (Dodge) 450kb
650 Series Mounting Instructions (Sprinter) 473kb
650 Series Mounting Instructions (Ford Transit Connect 2010-2013) 452kb
650 Series Mounting Instructions (Ford Transit Connect 2014-present) 452kb
650 Series Mounting Instructions (NV200 / City Express) 450kb
650 Series Mounting Instructions (Promaster - High Roof) 450kb
650 Series Mounting Instructions (Promaster - Standard Roof) 452kb
650 Series Mounting Instructions (Ram Promaster City) 454kb
650 Series Mounting Instructions (Ford Transit - Standard Roof) 469kb
650 Series Mounting Instructions (Ford Transit - Medium Roof) 469kb
650 Series Mounting Instructions (Ford Transit - High Roof) 469kb
2016 Tommy Gate Liftgate Guide 5626kb

  Product Videos|    View all Product Videos

650 Series - Demonstration Video
650 Series Demonstration
Factory Montage

  From the Photo Archive|    Visit the Photo Archive

  Related Blog Posts|    Visit Liftgate Central

2014 Ford Transit Connect Commercial Van
Product Updates - New Pickup and Cargo Van Brackets

Updated installation brackets for 2013 Dodge Ram 3500 DRW and 2014 Ford Transit Connect Commercial Vans. Read More

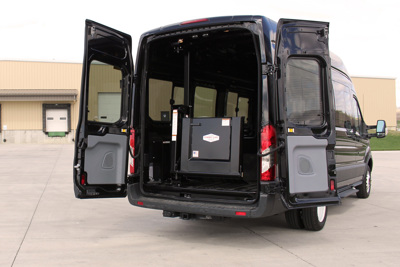

A 2015 Ford Transit Cargo Van with an installed Tommy Gate 650 Series Liftgate
