G2 Series

Pickup - G2 Series Icon

Pickup - G2 Series

Pickup - G2 Series Primary Image

The Second Generation

Tommy Gate’s G2 Series is the latest in parallel-arm technology. Dual hydraulic cylinders apply direct power to both sides of the platform for increased consistency in motion and stability. With reduced maintenance requirements, wide variety of platform options, and vast hitch compatibility, G2 Series hydraulic lifts are a strong, versatile lift that offer convenience and efficiency.

Liftgate Capacity
Liftgate Capacity Icon

1300 & 1500 lbs.

Hydraulic System
Hydraulic System Icon

Dual-Cylinder

Lift Style
Lift Style Icon

Parallel-Arm

G2 Series Features

  • Dual hydraulic cylinders
  • Virtually maintenance-free components
  • Recessed control
  • Larger platforms
  • Fully-enclosed hydraulic system
G2 Series Overview Image A G2 Series Overview Image B
Fully-enclosed hydraulic system. Image
Fully-enclosed hydraulic system.

Hydraulic cylinders are built in-house. Precision cylinder welds are executed by robotic machines, while assembly and testing are done by hand.

Painted before Assembled Image
Painted before Assembled

Dual-drive liftgates provide increased durability for rigorous cycling and have low maintenance requirements. A paint-before-assembly process increases the longevity of the lift’s aesthetics.

  All Models

See table below for applications.

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-54-7542 TP38 750 49  x  38 4 42 421 G
G2-54-7542 EA38 750 50  x  38 6 42 369 G
G2-60-1342 TP27 1300 55  x  27 4 42 438 A,B
G2-60-1342 TP38 1300 55  x  38 4 42 478 A,B
G2-60-1342 TP42 1300 55  x  42 7 42 503 A,B
G2-60-1342 TT27 1300 55  x  27 4 42 439 A,B
G2-60-1342 EA27 1300 55  x  27 6 42 395 A,B
G2-60-1342 EA38 1300 55  x  38 6 42 421 A,B
G2-60-1342 EA48 1300 55  x  48 6 42 442 A,B
G2-60-1342 BG27 1300 55  x  28 4 42 445 A,B
G2-60-1542 TP27 1500 55  x  27 4 42 438 B
G2-60-1542 TP38 1500 55  x  38 4 42 478 B
G2-60-1542 TP42 1500 55  x  42 7 42 503 B
G2-60-1542 TT27 1500 55  x  27 4 42 439 B
G2-60-1542 EA27 1500 55  x  27 6 42 395 B
G2-60-1542 EA38 1500 55  x  38 6 42 421 B
G2-60-1542 EA48 1500 55  x  48 6 42 442 B
G2-60-1542 BG27 1500 55  x  27 4 42 445 B

= Guaranteed Stock Model. Learn More.

  1. G2-54-7542 models are mid-size pickup applications and are sold with an included light kit. Not compatible with all options. Contact factory for more information.
  2. EA48 platform extends 10" above top of liftgate mainframe when closed.

  Applications & Brackets - Pickup

Code Manufacturer Model Year Body Style Bracket Install
G Chevrolet / GMC 2015 - 2017 Colorado / Canyon T-52
A Chevrolet / GMC 2007 - 2018 1500 T-170
B Chevrolet / GMC 2007 - 2018 2500 T-170
B Chevrolet / GMC 2007 - 2018 3500 T-170
A Chevrolet / GMC 2007 - 2007 1500 Classic T-160
B Chevrolet / GMC 2007 - 2007 2500 Classic T-160
B Chevrolet / GMC 2007 - 2007 3500 Classic T-160
A Chevrolet / GMC 1999 - 2006 1500 T-160
B Chevrolet / GMC 2001 - 2006 2500 T-160
B Chevrolet / GMC 2001 - 2006 3500 T-160
A Chevrolet / GMC 1999 - 2000 1500 Classic T-150
B Chevrolet / GMC 1999 - 2000 2500 Classic T-150
B Chevrolet / GMC 1999 - 2000 2500 T-160
B Chevrolet / GMC 1999 - 2000 3500 T-150
A Chevrolet / GMC 1988 - 2000 1500 T-150
B Chevrolet / GMC 1988 - 2000 2500 T-150
B Chevrolet / GMC 1988 - 2000 3500 T-150
A Dodge / Ram 2002 - 2018 1500 T-330
B Dodge / Ram 2003 - 2018 2500 T-330
B Dodge / Ram 2003 - 2018 3500* T-330
B Dodge / Ram 2013 - 2018 3500 (DRW)* T-340
B Dodge / Ram 1995 - 2002 2500 T-300
B Dodge / Ram 1995 - 2002 3500 T-300
A Dodge / Ram 1995 - 2001 1500 T-300
A Ford 2015 - 2018 F-150 T-270
A Ford 1997 - 2014 F-150 T-250
B Ford 1999 - 2016 F-250 T-260
B Ford 1999 - 2016 F-350 T-260
B Ford 2015 - 2016 F-450 T-260
B Ford 2017 - 2018 F-250 T-285
B Ford 2017 - 2018 F-350 T-285
B Ford 2017 - 2018 F-450 T-285
A Nissan 2004 - 2015 TITAN T-420
A Toyota 2007 - 2018 TUNDRA T-500
  1. DISCONTINUED 2002-2003 Ford SUPERCREW® not compatible with G2 Series. 2002-2003 SUPERCREW® requires special Model 48 and T-105 bracket.
  2. Nissan TITAN® requires special liftgate. Specify when ordering.
  3. 2013-2017 Dodge Ram 3500, with Dual Rear Wheels, requires bracket T-340.

 Available Platforms

TP27 1-piece treadplate steel w/ 27" loading depth + 4" taper

G2 Series TP27 Open G2 Series TP27 Closed

TP38 2-piece treadplate steel w/ 38" loading depth + 4" taper

G2 Series TP38 Open G2 Series TP38 Closed

TP42 2-piece treadplate steel w/ 42" loading depth + 7" taper

G2 Series TP42 Open G2 Series TP42 Closed

EA27 1-piece extruded aluminum w/ 27" loading depth + 6" taper

G2 Series EA27 Open G2 Series EA27 Closed

EA38 2-piece extruded aluminum w/ 38" loading depth + 6" taper

G2 Series EA38 Open G2 Series EA38 Closed

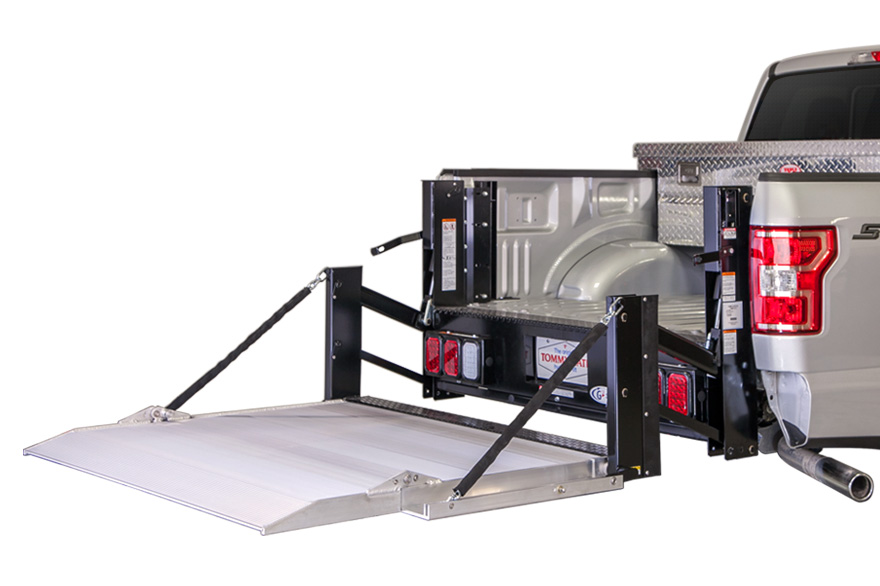

EA48 2-piece extruded aluminum w/ 48" loading depth + 6" taper

G2 Series EA48 Open G2 Series EA48 Closed

BG27 1-piece bargrate steel w/ 27" loading depth + 4" taper

G2 Series BG27 Open G2 Series BG27 Closed

TT27 1-piece TommyTraction w/ 27" loading depth + 4" taper

G2 Series TT27 Open G2 Series TT27 Closed

  Standard Features

Fixed & Timed Toggle Control Image
Fixed & Timed Toggle Control

prevents unauthorized use, and deactivates 90 seconds after operation

Power Cable w/ Full Length Ground Image
Power Cable w/ Full Length Ground

ensures consistent power supply

150-amp Circuit Breaker Image
150-amp Circuit Breaker

protects vehicle's electrical system, disconnects power for repairs

Maintenance-free Pins and Bushings Image
Maintenance-free Pins and Bushings

ensure consistent platform operation, require zero maintenance

  Available Options

Bolt-on Light Kit Image
Bolt-on Light Kit

3-light, incandescent combined stop/turn function (each side)

Bolt-on LED Light Kit Image
Bolt-on LED Light Kit

3-light, LED combined stop/turn function (each side)

Remote Pendant Control Image
Remote Pendant Control

allows additional operator movement

Dual Controls Image
Dual Controls

standard fixed control + remote pendant control

Rubber Platform Bumpers Image
Rubber Platform Bumpers

protects platform from scratching (sets of four or six)

Folding Tire Rack Image
Folding Tire Rack

provides support and stability for tire handlers

Extra Bracket Kit Image
Extra Bracket Kit

top bracket and gussets only (one set included with liftgate)

Galvanizing Option Image
Galvanizing Option

metallic-zinc coating prevents corrosion from harmful environmental elements

Rear Camera & Sensor Kit Image
Rear Camera & Sensor Kit

repositions factory camera and sensors while retaining component functionality

In-cab, Shut-off Switch Image
In-cab, Shut-off Switch

enables power to be disabled from within the truck cab

  1. Rear Camera & Sensor Bars are only available for select newer model pickups. Contact factory for more information.
  2. Galvanizing option may increase production time and is not available for Treadplate Steel platforms.

Documents

  G2 Series

Document Name Size Download
G2 Series Owner's Manual 1549kb
Pickup & Service Body - G2 Series Parts List 128kb
Pickup - G2 Series Dimensions 241kb
Hitch Compatibility Chart 76kb
Guaranteed Stock List 466kb
G2-Series Galvanizing Option 229kb
Rear Camera & Sensor Bar Option 697kb
Rear Camera & Sensor Bar Application Chart 185kb
G2 Series General Install Notes 27kb
G2 Series Wiring Instructions 72kb
T52 Bracket Instructions 435 kb
T100 Bracket Instructions 518kb
T150 & T150-T Bracket Instructions 613kb
T155 Bracket Instructions 555kb
T160 Bracket Instructions 585kb
T170 Bracket Instructions 588kb
G170 Bracket Instructions 475kb
T200 Bracket Instructions 556kb
T250 & T260 Bracket Instructions 620kb
G250 & G260 Instructions 575kb
T270 Bracket Instructions 606kb
G270 Bracket Instructions 573kb
T285 Bracket Instructions 595kb
T300 & T300-94 Bracket Instructions 510kb
T310 Bracket Instructions 515kb
T330 Bracket Instructions 585kb
G330 Bracket Instructions 516kb
T420 Bracket Instructions 541kb
T500 Bracket Instructions 550kb
G500 Bracket Instructions 3mb
G2 Series Cylinder Repair Instructions 1942kb
G2 Series EA Platform and Torsion Replacement 236kb
G2 Series Latch Adjustment 199kb
Folding Tire Rack Instructions 490kb
Plastic Box Filler Instructions 706kb
G2 Recessed Lights Instructions 1120kb
Backup Bar Installation Instructions 296kb
2016 Tommy Gate Liftgate Guide 5626kb

  Product Videos|    View all Product Videos

G2 Series - Pickup / Service Operation
G2 Series Demonstration
Factory Montage

  Related Blog Posts|    Visit Liftgate Central

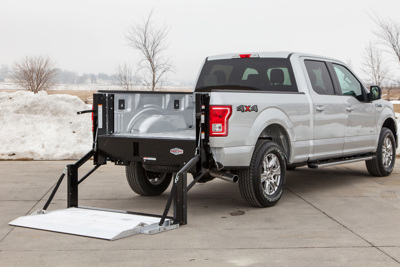

A Ford F-150 pickup truck with Tommy Gate liftgate installed
Liftgates for Pickups: What To Know

Answering the basic questions in order to select the ideal pickup liftgate model. Read More

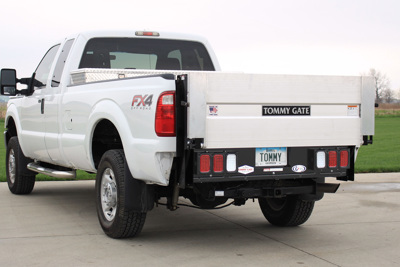

Tommy Gate G2-Series Liftgate on a Ford Superduty pickup truck
G2 Series Updates!

Tommy Gate has made America's favorite liftgate newer, leaner, and better. Read More

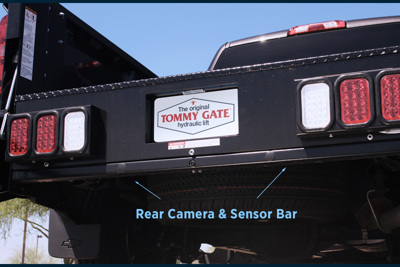

A close up of a Tommy Gate Liftgate with Rear Camera & Sensor Bar
