Tuckunder Series: TKL

Flatbed and Van - Tuckunder Series: TKL Icon

Flatbed and Van - Tuckunder Series: TKL

Flatbed and Van - Tuckunder Series: TKL Primary Image

TKL Models

TKL models feature a single-cylinder, power-down, highly efficient design and accommodates bed heights from 33 to 47 inches. Lightweight and durable, the TKL combines sleek modern engineering and 2500lbs. of lifting capacity and has applications to fit all major flatbed, stake and van bodies.

Liftgate Capacity
Liftgate Capacity Icon

2500 lbs.

Hydraulic System
Hydraulic System Icon

Single-Cylinder

Tuckunder Style
Tuckunder Style Icon

Standard Ride

Tuckunder Series: TKL Features

  • Low bed height compatible
  • Lightweight
  • Power-down
  • Stores underneath vehicle bed
  • Low-profile, fixed toggle control
  • Thermal protected motor
  • Fully protected hydraulic system
Tuckunder Series: TKL Overview Image A Tuckunder Series: TKL Overview Image B
Bed Extensions Image
Bed Extensions

All TKL, Tuckunder Series liftgates have an optional, 3/16-inch steel construction bed extension. Choose an 18-inch, fixed side step (FX) for bed heights 33 to 39-inches or a 25 - 31-inch, adjustable side step (ADJ) for bed heights 40 to 47-inches. All Tommy Gate TKL, Tuckunder Series bed extensions come with rubber dock bumpers and an optional recessed light kit.

Lightweight and Low Bed Height Compatible Image
Lightweight and Low Bed Height Compatible

The Tommy Gate Tuckunder Series: TKL features a single-cylinder, power-down, highly efficient design and accommodates bed heights from 33 to 47 inches. Lightweight and durable, this liftgate will out lift and outlast most in its class.

  Models for 96" & 102" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
TKL-78-25 EA33 2500 78  x  33 4 33-47 511 A, B
TKL-78-25 EA37 2500 78  x  37 4 35-47 519 A, B
TKL-78-25 EA41 2500 78  x  41 4 37-47 534 A, B
  1. Minimum bed height is laden. Maximum bed height is unladen
  2. Must add bed extension weight for total installed gate weight.
  3. 4-inch front taper and a 4-inch back taper.

For further detailed liftgate dimensions, please click here.

  Applications & Brackets - Flatbed and Van

Code Body Style
A 102" Wide Bodies
B 96" Wide Bodies

Available Bed Extensions*

Body Size Bed Height Bed Extension Type** Weight Description
96" 33 - 39 FX 219 18", bolt-on side steps, including rubber dock bumpers
96" 40 - 47 ADJ 257 25-31", adjustable, bolt-on side steps, including rubber dock bumpers
102" 33 - 39 FX 227 18", bolt-on side steps, including rubber dock bumpers
102" 40 - 47 ADJ 265 25-31", adjustable, bolt-on side steps, including rubber dock bumpers

   *  All bed extensions are 3/16-inch thick steel construction

 **  18-inch, fixed side steps (FX) are only available on bed heights 33 to 39-inches

       25 - 31-inch, adjustable side steps (ADJ) are only available on bed heights 40 to 47-inches

 Available Platforms

EA 33 2-piece, 33-inch-deep, plus a 4" front and 4" back taper, extruded aluminum platform (w/ 17" base and 16" flipper)

Tuckunder Series: TKL EA 33 Open Tuckunder Series: TKL EA 33 Closed

EA 37 2-piece, 37-inch-deep, plus a 4" front and 4" back taper, extruded aluminum platform (w/ 19 1/2" base and 17 1/2" flipper)

Tuckunder Series: TKL EA 37 Open Tuckunder Series: TKL EA 37 Closed

EA 41 2-piece, 41-inch-deep, plus a 4" front and 4" back taper, extruded aluminum platform (w/ 21 1/2" base and 19 1/2" flipper)

Tuckunder Series: TKL EA 41 Open Tuckunder Series: TKL EA 41 Closed

  Standard Features

Low-profile, Fixed Toggle Control Image
Low-profile, Fixed Toggle Control

a low-profile control with five-minute inactivity shut-off

Platform Power Down Image
Platform Power Down

offers consistent platform action both upwards and downwards

Standard Power Cable Image
Standard Power Cable

37-foot cable, 4-gauge, full-length power and ground

Thermal Protected Motor Image
Thermal Protected Motor

Electric motor with thermal shut off

Platform Flags Image
Platform Flags

Reflective flags, mounted under platform

  Available Options

Bumper Bar Image
Bumper Bar

a low, full-width steel bar mounted under the liftgate

Combo, LED Light Kit Image
Combo, LED Light Kit

includes 2, combination, recessed lights in the dock extension side steps that serve 4 functions (tail, turn, stop, and reverse)

Split Cart Stops Image
Split Cart Stops

secures wheeled cargo (loses 4-inches of loading depth when deployed)

Dual Controls Image
Dual Controls

low-profile, fixed control + remote pendant control

Auxiliary Battery Box Image
Auxiliary Battery Box

provides adequate power on longer straight truck and trailer applications

Extended Power Cable Image
Extended Power Cable

41-foot cable, 4-gauge, full-length power and ground

24-volt System Image
24-volt System

compatible with vehicles running a 24-volt system

License Plate Mount Image
License Plate Mount

bracket plate holder with light

In-line Power Shut Off Image
In-line Power Shut Off

disables power to the liftgate along the power line

In-cab, Shut-off Switch Image
In-cab, Shut-off Switch

enables power to be disabled from within the truck cab

Documents

  Tuckunder Series: TKL

Document Name Size Download
Tuckunder Series - Product Brochure 1438kb
Tuckunder Series - TKL Owner's Manual 5275kb
Flatbed/Van - Tuckunder Series - TKL Dimensions 292kb
TKL Models Installation Instructions 3002kb
TKL Underride Bumper Bar Installation Instructions 155kb
Estimated Installation Times 452kb
Warranty Guidelines 506kb
Flatbed, Stake, & Van - Tuckunder Series - TKL Parts List 326kb
Auxiliary Battery Box Option 1347kb
Auxiliary Battery Box Selection Guide 3098kb
Auxiliary Battery Box Instructions 3790kb
Auxiliary Battery Box (Charge Line) Instructions 850kb
TKL License Plate Kit Mounting Instructions 155kb
Tommy Gate Liftgate Guide 9133kb

  Product Videos|    View all Product Videos

Tuckunder - TKL Operation
Tuckunder Development
Factory Montage

  From the Photo Archive|    Visit the Photo Archive

  Related Blog Posts|    Visit Liftgate Central

A Straight Truck with Tommy Gate Railgate
Liftgates for Flatbeds & Box Trucks: What to Know

How to identify the ideal liftgate model for your box van or straight truck. Read More

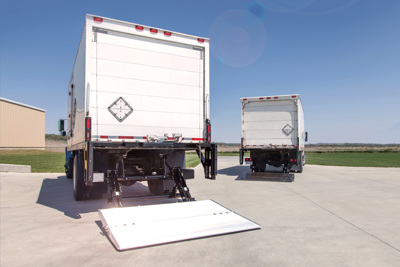

Two straight trucks with Tommy Gate Tuckunder Liftgates installed.
