G2 Series

Arrow Image
Flatbed and Van - G2 Series Icon

Flatbed and Van - G2 Series

Flatbed and Van - G2 Series Primary Image

More Than a Pickup Lift

Supporting larger platforms, G2 Series models are compatible with flatbed, stake and van bodies and offer a wide selection of platform materials to accommodate almost any industry application.

Liftgate Capacity
Liftgate Capacity Icon

1000 - 2000 lbs.

Hydraulic System
Hydraulic System Icon

Dual-Cylinder

Lift Style
Lift Style Icon

Parallel-Arm

G2 Series Features

  • Dual hydraulic cylinders
  • Virtually maintenance-free components
  • Recessed control
  • Hitch compatibility
  • Larger platforms
  • Fully-enclosed hydraulic system located within the liftgate mainframe
G2 Series Overview Image A G2 Series Overview Image B
Dual Drive Image
Dual Drive

Hydraulic cylinders are built in-house. Precision cylinder welds are executed by robotic machines, while assembly and testing are done by hand.

Direct Power Image
Direct Power

The Tommy Gate G2 Series is a dual-cylinder, parallel-arm design which utilizes a pair of hydraulic cylinders to lower and raise the lift by applying direct power to both sides of the platform.

  Models for 96" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-92-2050 TP35 2000 87  x  35 6 50 653 B
G2-92-2050 TP41 2000 87  x  41 6 50 686 B
G2-92-2050 EA37 2000 85  x  37 6 50 569 B
G2-92-2050 EA41 2000 85  x  41 6 50 585 B
G2-92-2050 TT33 2000 87  x  33 6 50 637 B
G2-92-1650 BG33 1600 87  x  33 6 50 637 B
G2-92-1650 EA41 1600 85  x  41 6 50 577 B
G2-92-1650 EA37 1600 85  x  37 6 50 561 B
G2-92-1650 TT33 1600 87  x  33 6 50 612 B
G2-92-1650 TP41 1600 87  x  41 6 50 655 B
G2-92-1650 TP35 1600 87  x  35 6 50 628 B
G2-92-1350 BG33 1300 87  x  33 6 50 637 B
G2-92-1350 EA41 1300 85  x  41 6 50 577 B
G2-92-1350 EA37 1300 85  x  37 6 50 561 B
G2-92-1350 TT33 1300 87  x  33 6 50 612 B
G2-92-1350 TP41 1300 87  x  41 6 50 655 B
G2-92-1350 TP35 1300 87  x  35 6 50 628 B

...

  Models for 90" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-87-2050 TP35 2000 82  x  35 6 50 623 C
G2-87-2050 TP41 2000 82  x  41 6 50 664 C
G2-87-2050 EA37 2000 80  x  37 6 50 542 C
G2-87-2050 EA41 2000 80  x  41 6 50 557 C
G2-87-2050 TT33 2000 82  x  33 6 50 592 C
G2-87-1650 BG33 1600 82  x  33 6 50 615 C
G2-87-1650 EA41 1600 80  x  41 6 50 557 C
G2-87-1650 EA37 1600 80  x  37 6 50 542 C
G2-87-1650 TT33 1600 82  x  33 6 50 592 C
G2-87-1650 TP41 1600 82  x  41 6 50 633 C
G2-87-1650 TP35 1600 82  x  35 6 50 607 C
G2-87-1350 BG33 1300 82  x  33 6 50 615 C
G2-87-1350 EA41 1300 80  x  41 6 50 557 C
G2-87-1350 EA37 1300 80  x  37 6 50 542 C
G2-87-1350 TT33 1300 82  x  33 6 50 592 C
G2-87-1350 TP41 1300 82  x  41 6 50 633 C
G2-87-1350 TP35 1300 82  x  35 6 50 607 C

= Guaranteed Stock Model. Learn More.

  Models for 85" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-81-2050 EA37 2000 75  x  37 6 50 524 D
G2-81-2050 EA41 2000 75  x  41 6 50 538 D
G2-81-2050 TT33 2000 76  x  33 6 50 572 D
G2-81-1650 TP35 1600 76  x  35 6 50 578 D
G2-81-1650 TP41 1600 76  x  41 6 50 612 D
G2-81-1650 TT33 1600 76  x  33 6 50 572 D
G2-81-1650 EA37 1600 75  x  37 6 50 524 D
G2-81-1650 EA41 1600 75  x  41 6 50 538 D
G2-81-1650 BG33 1600 76  x  33 6 50 592 D
G2-81-1350 TP35 1300 76  x  35 6 50 578 D
G2-81-1350 TP41 1300 76  x  41 6 50 612 D
G2-81-1350 TT33 1300 76  x  33 6 50 572 D
G2-81-1350 EA37 1300 75  x  37 6 50 524 D
G2-81-1350 EA41 1300 75  x  41 6 50 538 D
G2-81-1350 BG33 1300 76  x  33 6 50 592 D

= Guaranteed Stock Model. Learn More.

  Models for 80" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-73-2050 EA37 2000 66  x  37 6 50 493 E
G2-73-2050 EA41 2000 66  x  41 6 50 505 E
G2-73-2050 TT33 2000 68  x  33 6 50 534 E
G2-73-1650 TP35 1600 68  x  35 6 50 547 E
G2-73-1650 TP41 1600 68  x  41 6 50 570 E
G2-73-1650 TT33 1600 68  x  33 6 50 534 E
G2-73-1650 EA37 1600 66  x  37 6 50 493 E
G2-73-1650 EA41 1600 66  x  41 6 50 505 E
G2-73-1650 BG33 1600 68  x  33 6 50 553 E
G2-73-1350 TP35 1300 68  x  35 6 50 547 E
G2-73-1350 TP41 1300 68  x  41 6 50 570 E
G2-73-1350 TT33 1300 68  x  33 6 50 534 E
G2-73-1350 EA37 1300 66  x  37 6 50 493 E
G2-73-1350 EA41 1300 66  x  41 6 50 505 E
G2-73-1350 BG33 1300 68  x  33 6 50 553 E

= Guaranteed Stock Model. Learn More.

  Models for >67" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-65-2050 EA37 2000 60  x  37 6 50 471 F
G2-65-2050 EA41 2000 60  x  41 6 50 482 F
G2-65-2050 TT33 2000 61  x  33 6 50 508 F
G2-65-1650 TP35 1600 61  x  35 6 50 520 F
G2-65-1650 TP41 1600 61  x  41 6 50 541 F
G2-65-1650 EA37 1600 60  x  37 6 50 471 F
G2-65-1650 EA41 1600 60  x  41 6 50 482 F
G2-65-1650 TT33 1600 61  x  33 6 50 508 F
G2-65-1650 BG33 1600 62  x  33 6 50 527 F
G2-65-1350 TP35 1300 61  x  35 6 50 520 F
G2-65-1350 TP41 1300 61  x  41 6 50 541 F
G2-65-1350 TT33 1300 61  x  33 6 50 508 F
G2-65-1350 EA37 1300 60  x  37 6 50 471 F
G2-65-1350 EA41 1300 60  x  41 6 50 482 F
G2-65-1350 BG33 1300 62  x  33 6 50 527 F

= Guaranteed Stock Model. Learn More.

  Models for >65" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-60-2050 EA37 2000 55  x  37 6 50 455 G
G2-60-2050 EA41 2000 55  x  41 6 50 485 G
G2-60-2050 TT33 2000 56  x  33 6 50 445 G
G2-60-1650 TP35 1600 56  x  35 6 50 500 G
G2-60-1650 TT33 1600 56  x  33 6 50 445 G
G2-60-1650 EA37 1600 55  x  37 6 50 455 G
G2-60-1650 EA41 1600 55  x  41 6 50 485 G
G2-60-1350 TP35 1300 56  x  35 6 50 500 G
G2-60-1350 TT33 1300 56  x  33 6 50 445 G
G2-60-1350 EA37 1300 55  x  37 6 50 455 G
G2-60-1350 EA41 1300 55  x  41 6 50 485 G

= Guaranteed Stock Model. Learn More.

  Models for 60" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-54-2050 EA37 2000 49  x  37 6 50 435 H
G2-54-2050 EA41 2000 49  x  41 6 50 445 H
G2-54-2050 TT33 2000 51  x  33 6 50 473 H
G2-54-1650 TP35 1600 50  x  35 6 50 468 H
G2-54-1350 TP35 1300 50  x  35 6 50 468 H

= Guaranteed Stock Model. Learn More.

  Low-Profile G2 Models

Low-Profile G2 Offerings for Flatbed, Stake, & Van

Model Capacity Load Area Taper Travel Weight Applications Spec
G2-65-1042 TP38 1000 60  x  38 4 42 505 F
G2-65-1042 EA38 1000 60  x  38 6 42 436 F
G2-73-1042 TP38 1000 66  x  38 4 42 532 E
G2-73-1042 EA38 1000 66  x  38 6 42 458 E
G2-81-1042 TP38 1000 75  x  38 4 42 572 D
G2-81-1042 EA38 1000 75  x  38 6 42 489 D
G2-87-1042 TP38 1000 80  x  38 4 42 592 C
G2-87-1042 EA38 1000 80  x  38 6 42 507 C
G2-92-1042 TP38 1000 85  x  38 4 42 609 B
G2-92-1042 EA38 1000 85  x  38 6 42 523 B
G2-65-1642 TP38 1600 60  x  38 4 42 505 F
G2-65-1642 EA38 1600 60  x  38 6 42 436 F
G2-73-1642 TP38 1600 66  x  38 4 42 532 E
G2-73-1642 EA38 1600 66  x  38 6 42 458 E
G2-81-1642 TP38 1600 75  x  38 4 42 572 D
G2-81-1642 EA38 1600 75  x  38 6 42 489 D
G2-87-1642 TP38 1600 80  x  38 4 42 592 C
G2-87-1642 EA38 1600 80  x  38 6 42 507 C
G2-92-1642 TP38 1600 85  x  38 4 42 609 B
G2-92-1642 EA38 1600 85  x  38 6 42 523 B
  1. Low-Profile G2 Models are a specialized application recommended for specific vehicle requirements.
Show Additional Models

  Applications & Order Codes - Flatbed and Van → G2 Series

Code Body Style
B 96" Wide Bodies
C 90" Wide Bodies
D 85" Wide Bodies
E 80" Wide Bodies
F >67" Wide Bodies
G >65" Wide Bodies
H -









 Available Platforms

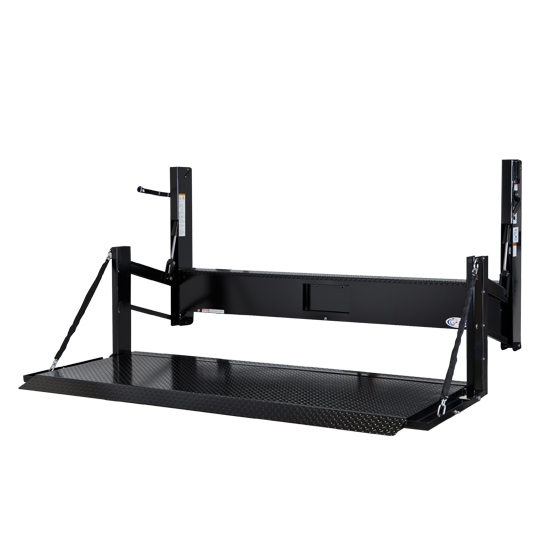

TP35

One-piece steel treadplate w/ 35" loading depth + 6" taper

G2 Series TP35 Open G2 Series TP35 Closed
TP41

One-piece steel treadplate w/ 41" loading depth + 6" taper

G2 Series TP41 Open G2 Series TP41 Closed
TT33

One-piece steel TommyTraction w/ 33" loading depth + 6" taper

G2 Series TT33 Open G2 Series TT33 Closed

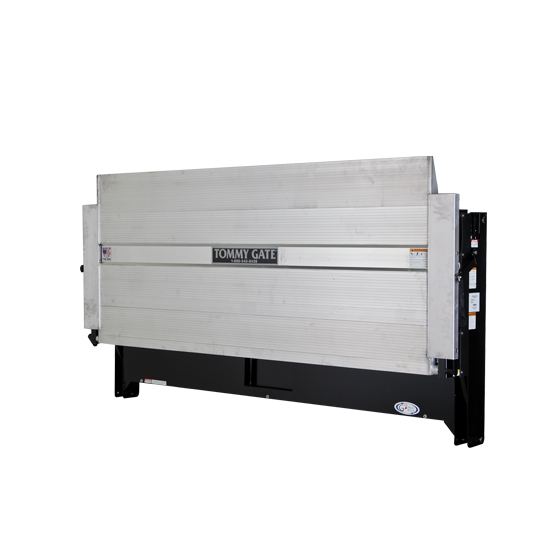

EA37

One-piece extruded aluminum w/ 37" loading depth + 6" taper

G2 Series EA37 Open G2 Series EA37 Closed

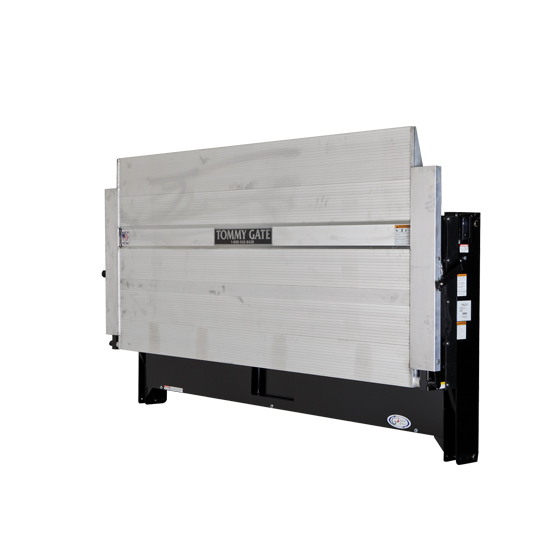

EA41

One-piece extruded aluminum w/ 41" loading depth + 6" taper

G2 Series EA41 Open G2 Series EA41 Closed
BG33

One-piece steel bar grate w/ 33" loading depth + 6" taper (Only available: 1300lb. & 1600lb. G2)

G2 Series BG33 Open G2 Series BG33 Closed
TP38

One-piece steel treadplate w/ 38" loading depth + 4 1/2" taper

G2 Series TP38 Open G2 Series TP38 Closed

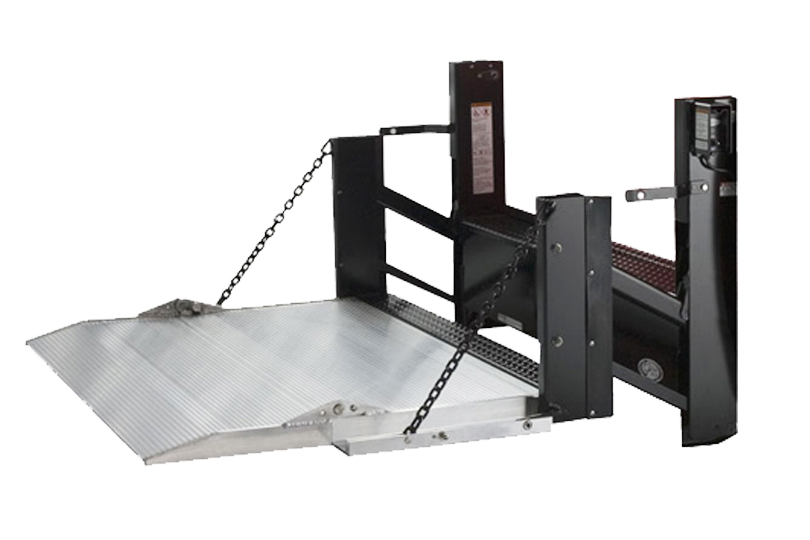

EA38

One-piece extruded aluminum w/ 38" loading depth + 6" taper

G2 Series EA38 Open G2 Series EA38 Closed
Low Profile - TP38

Two-piece steel treadplate w/ 38" loading depth + 4" taper

G2 Series Low Profile - TP38 Open G2 Series Low Profile - TP38 Closed
Low Profile - EA38

Two-piece extruded aluminum w/ 38" loading depth + 6" taper

G2 Series Low Profile - EA38 Open G2 Series Low Profile - EA38 Closed

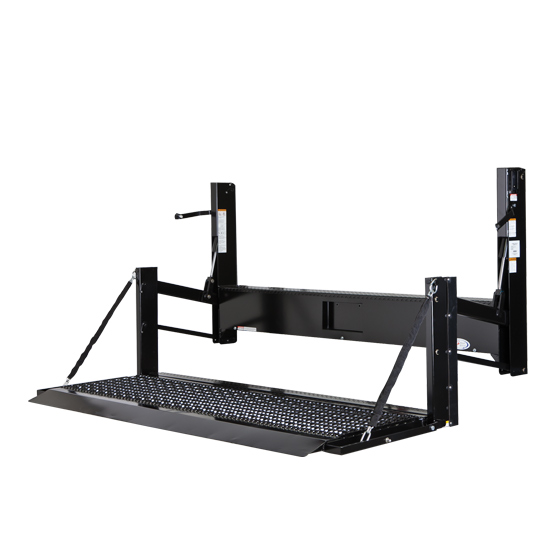

TT33 (1)

One-piece steel TommyTraction w/ 33" loading depth + 6" taper

G2 Series TT33 (1) Open G2 Series TT33 (1) Closed

  Standard Features

Fixed & Timed Toggle Control Image
Fixed & Timed Toggle Control

prevents unauthorized use, and deactivates 90 seconds after operation

Power Cable w/ Full Length Ground Image
Power Cable w/ Full Length Ground

ensures consistent power supply

150-amp Circuit Breaker Image
150-amp Circuit Breaker

protects vehicle's electrical system, disconnects power for repairs

Maintenance-free Pins and Bushings Image
Maintenance-free Pins and Bushings

ensure consistent platform operation, require zero maintenance





  Available Options

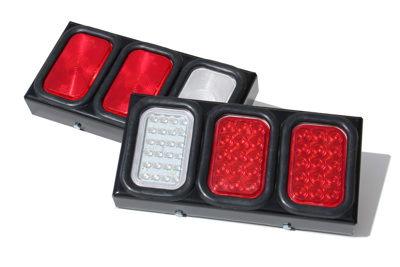

Bolt-on LED 3-Light Kit T-57L Image
Bolt-on LED 3-Light Kit T-57L

Kit includes a pair of 3-light, LED combined stop/turn function lights (12v/24v compatible)

Bolt-on LED 3-Light Kit T-58L Image
Bolt-on LED 3-Light Kit T-58L

Kit includes a pair of 3-light, LED combined stop/turn function lights (12v compatible)

Bolt-on 2-light LED Light Kit T-67L Image
Bolt-on 2-light LED Light Kit T-67L

Kit includes a pair of 2-light, LED combined stop/turn function (one red, one white) lights (12v compatible)

G2 Series Gas Bottle Bracket Image
G2 Series Gas Bottle Bracket

This optional kit allows liftgate operators to secure one gas bottle on any G2 Series liftgate.

Remote Pendant Control Image
Remote Pendant Control

allows additional operator movement

Dual Controls Image
Dual Controls

standard fixed control + remote pendant control

Remote Pendant Control Mounting Kit Image
Remote Pendant Control Mounting Kit

bracket and hook to store pendant control inside the vehicle (pendant sold separately)

Rubber Platform Bumpers Image
Rubber Platform Bumpers

protects platform from scratching (sets of four or six)

Folding Tire Rack Image
Folding Tire Rack

provides support and stability for tire handlers

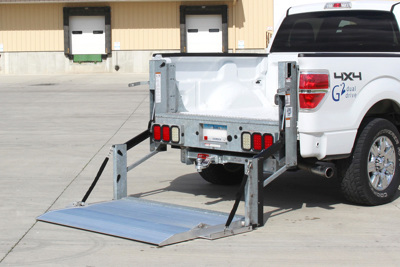

Galvanizing Option Image
Galvanizing Option

metallic-zinc coating prevents corrosion from harmful environmental elements

In-cab, Shut-off Switch Image
In-cab, Shut-off Switch

enables power to be disabled from within the truck cab

24v Liftgate Image
24v Liftgate

compatible with vehicles running a 24-volt system

CL Component Kit Image
CL Component Kit

repositions the rear camera (C) and ID/clearance lights (L) while retaining functionality

Notes: 1. Galvanizing option may increase production time and is not available for Treadplate Steel platforms.

Documents for G2 Series

  Product

Owner's Manuals Size Download
G2 Series Owner's Manual 1549kb
Warranty Documentation Size Download
Warranty Guidelines 506kb
Parts Lists Size Download
Flatbed, Stake, & Van - G2 Series Parts List 466kb
Other Documents Size Download
G2-Series Galvanizing Option 229kb

  Installation

General Size Download
Estimated Installation Times 452kb
Wiring Instructions Size Download
Electrical Guidelines 14kb
G2 Series Wiring Instructions 72kb
Flatbed, Stake, and Van Installation Instructions Size Download
Flatbed, Stake, and Van Installation Instructions 481kb
Repair Instructions Size Download
G2 Series Cylinder Repair Instructions 1942kb
G2 Series Latch Replacement/Adjustment 199kb
G2 Series EA Platform and Torsion Replacement 236kb
G2-50 Platform Chain Replacement 241kb
Optional Equipment Instructions Size Download
Folding Tire Rack Instructions 490kb
T-67 Bolt-on Light Kit Mounting Instructions 1120kb
T-57/ T-58 Bolt-on Light Kit Instructions 1120kb
Lid Guard Installation Instructions 3790kb

  Dimensions

Detailed Dimensions Size Download
Flatbed/Van - G2 Series Dimensions 330kb
Flatbed/Van - "Low-Profile" G2 Series Dimensions 284kb

  Brochures

New Products Size Download
G2 Series - Gas Bottle Bracket Flyer 620kb

  Product Videos|    View all Product Videos

G2 Series - Flatbed / Van Operation
G2 Series Optional Gas Bottle Bracket
G2 Series Demonstration
Factory Montage

  From the Photo Archive|    Visit the Photo Archive

Tommy Gate G2-Series liftgate installed on a stake truck Tommy Gate G2-Series liftgate on a stake truck G2-Series liftgate in the stored position on a stake truck Galvanized G2-Series liftgate on a stake truck Galvanized G2-Series liftgate on a stake truck Galvanized G2-Series Liftgate for Flatbed, Stake, and Van Bodies G2-Series Liftgate on a box truck G2-Series liftgate installed on a stake truck Low-Profile G2-Series liftgate Low-Profile G2-Series Liftgate Low-Profile, Galvanized G2-Series Liftgate Low-Profile, Galvanized G2-Series Liftgate Low-Profile, Galvanized G2-Series Liftgate

  Related Blog Posts|    Visit Liftgate Central

Warehouses Nationwide Image

We ship anywhere around the globe.

Warehouse Locations
Repair Parts Image

Need a part?

Parts Finder
  Find a Dealer
