The New Underbody, External Van Lift

It's there when you need it and not when you don't. The Cassette Liftgate mounts below the van, giving full access to the back of the vehicle without using the lift. These models are ideal for operators who need the functionality of a liftgate when interior storage space and access are a priority. The platform is made of corrosion-resistant aluminum, and all models include an automatic retention ramp, underside skid plate, and one-touch storage.

Liftgate Capacity
Liftgate Capacity Icon

700 lbs.

Hydraulic System
Hydraulic System Icon

Dual-Cylinder, Rack & Pinion

Van Lift Location
Van Lift Location Icon

External-Mounting

Cassette Liftgate Features

Cassette Series models are loaded with standard features:

  • Minimal Footprint/ Out of the Way Storage
  • Underside Skid Plate
  • One-Touch Storage
  • Automatic Retention Ramp/ Taper
  • 4-function Pendant Control
  • Aluminum Bridge
Cassette Liftgate Overview Image A Cassette Liftgate Overview Image B
Minimal Footprint/ Out of the Way Storage Image
Minimal Footprint/ Out of the Way Storage

It takes up no space inside the van and does not obstruct the back door, giving operators full access to the vehicle and only deploying the liftgate when needed.

Underside Skid Plate Image
Underside Skid Plate

Every Cassette Liftgate includes a standard galvanized, under-mount skid plate, which provides additional protection when driving the vehicle.

  Cassette Liftgate - Model 44

Model Capacity Load Area Taper Travel Weight Applications Spec
CST-44-7039 EA47 700 32  x  47 3 39 320 lbs A

IMPORTANT

  • Liftgate installations are not compatible with any form of towing hitch.
  • Liftgate installations require the spare tire to be relocated.
  • Liftgate installations require the rear most part of the exhaust to be modified. Please see installation instructions for more details.
  • Rear suspension lift kit required on some applications. Visit tommygate.com for more information.
  • Cassette liftgates are not compatible with floor-mounted rear heat or rear air conditioning.



  Applications & Brackets - Cargo Van → Cassette Liftgate

Code Manufacturer Model Year Body Style Bracket Install
A Ford 2015 - 2024 Transit 150/250/350 (Non-Extended) ⁴ ⁵ ¹⁰ 17697
A Ford 2015 - 2024 Transit 250/350 (Extended) ⁴ ⁵ ¹⁰ 17697
A Chevrolet / GMC 2003 - 2024 Express/ Savana⁴ 17720
A Sprinter 2007 - 2024 170" WB Non-Extended 2500/3500/4500 ⁶ ⁷ ⁸ 17915
A Sprinter 2007 - 2024 170" WB Extended 2500/3500/4500 ⁶ ⁷ ⁸ ⁹ 17915

NOTES

  1. Cassette installations are not compatible with any form of towing hitch.
  2. Cassette installations require the spare tire to be relocated.
  3. Cassette installations require the rear most part of the exhaust to be modified.
  4. A rear lift kit is required on applications with rear bumper ground clearance less than 18”. Other aftermarket lift kits may also work.
  5. Some Ford Transit installations may require a separate customer connection point kit to be ordered from Ford. See installation instructions for details.
  6. Mercedes-Benz requires the use of an auxiliary battery for all liftgates installed on SPRINTER® vans.
  7. SPRINTER® 4WD models with a bed-height greater than 30” are not compatible.
  8. Sprinter step bumpers must be removed for liftgate to be installed.
  9. This application requires an extended, 37-foot power cable (Option E3).
  10. Excludes all-electric E-Transit models. Includes AWD Transit and Transit Trail™.







 Available Platforms

EA47

2-piece extruded aluminum w/ 47" loading depth + 3" taper and retention ramp.

Cassette Liftgate EA47 Open Cassette Liftgate EA47 Closed

  Standard Features

Minimal Footprint/ Out of the Way Storage Image
Minimal Footprint/ Out of the Way Storage

It takes up no space inside the van and does not obstruct the back door, giving operators full access to the vehicle and only deploying the liftgate when needed.

Underside Skid Plate Image
Underside Skid Plate

Every Cassette Liftgate includes a standard galvanized, undermount skid plate, which provides additional protection when driving the vehicle.

4-function Pendant Control Image
4-function Pendant Control

10-foot, four-function corded pendant control with socket to be used inside the van.

One-Touch Storage Image
One-Touch Storage

When you're ready to stow the liftgate, simply fold the platform and press a button for easy storage.

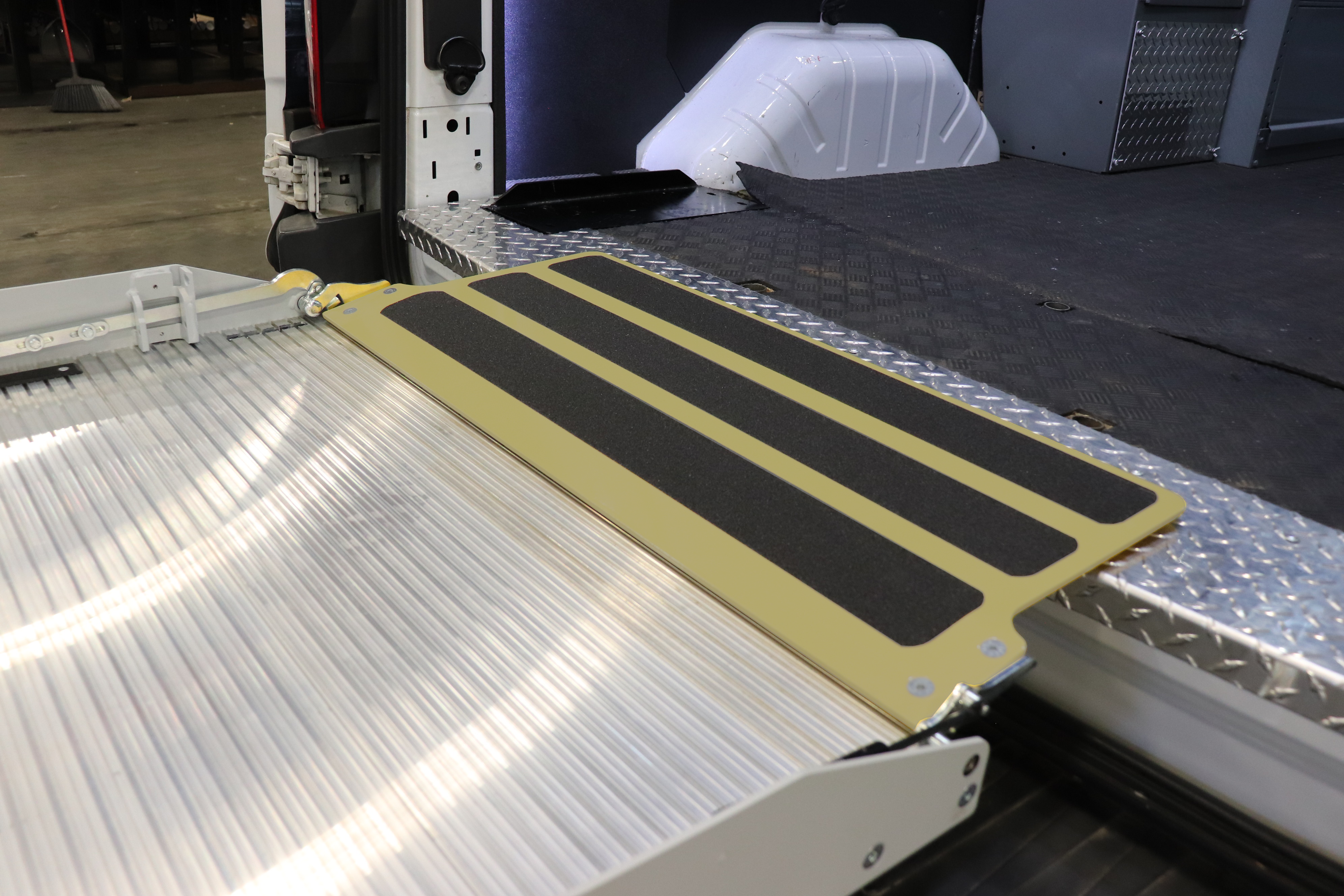

Aluminum Bridge  Image
Aluminum Bridge

Aluminum bridge mounts provide a smooth transition for moving cargo to and from the lift platform to the vehicle bed.

Automatic Retention Ramp/Taper Image
Automatic Retention Ramp/Taper

The retention ramp will automatically deploy to a taper once the liftgate hits the ground. The taper changes back to a retention ramp as the liftgate raises, making it favorable for wheeled cargo.

Manual Hand Pump Image
Manual Hand Pump

In the event that the liftgate does not operate, a Hand Pump Bar is provided to use with the manual valve on the pump and motor to manually raise and lower the liftgate.





  Available Options

Lift Kit Image
Lift Kit

Need more clearance underneath your van? No problem, our Lift Kits offer a possible solution for increasing clearance between the liftgate and the ground.

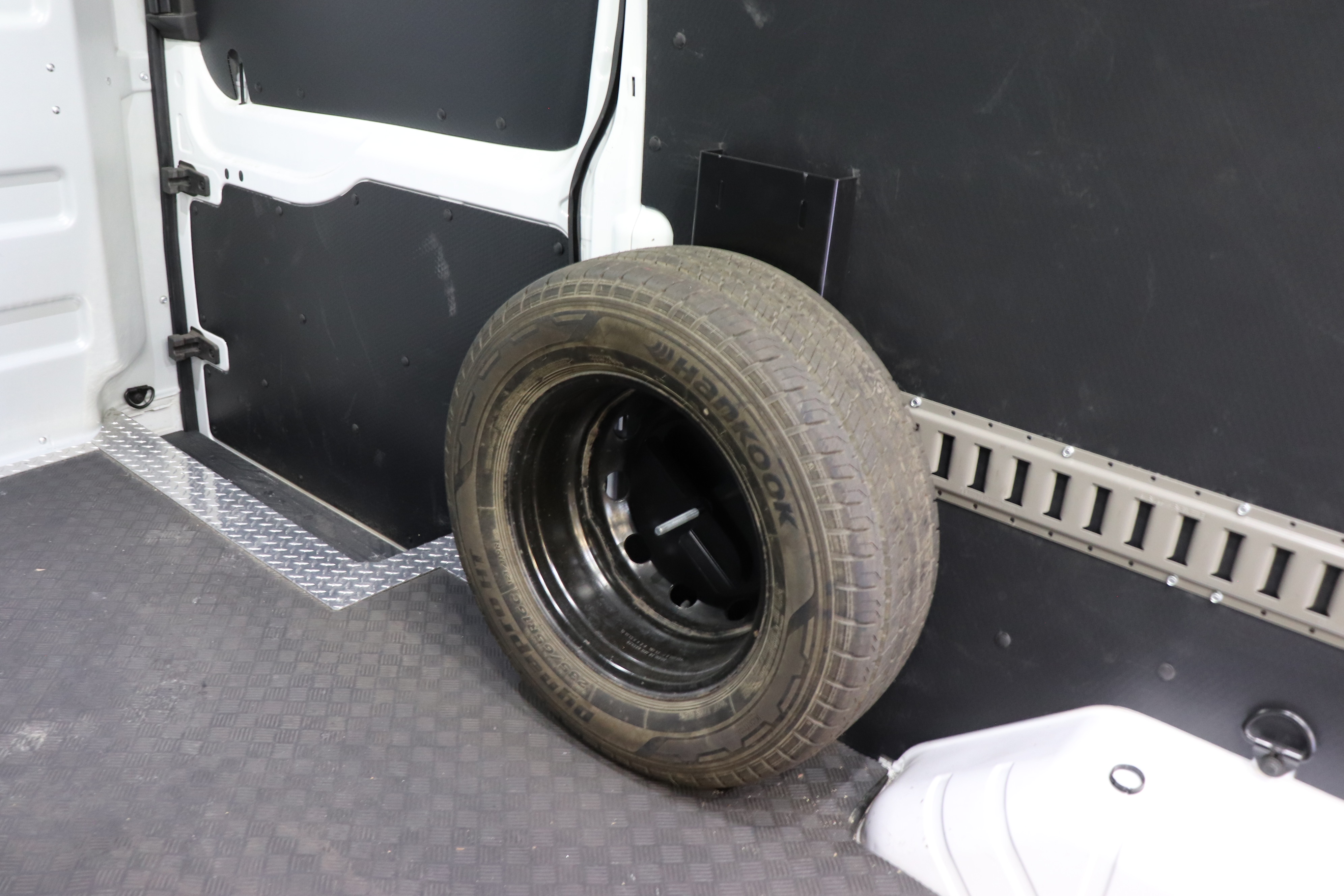

Spare Tire Relocation Kit Image
Spare Tire Relocation Kit

Tire bracket kit to relocate spare tire from under the rear of the vehicle to the inside of the vehicle.



  1. A rear lift kit is required on applications with rear bumper ground clearance less than 18”. Other aftermarket lift kits may also work. See page 2 for more info.
  2. Pump Box must remain in vertical position after mounting. Visit tommygate.com for more details.
