Dock-Friendly (RF) Railgate Models

Dock-friendly models feature folding "RF" platforms able to achieve non-obstructing positions for forklift or dock loading. Also included are a closure-assist torsion bar and maintenance-free bushings, making them some of the best liftgates ever seen in a loading bay.

Liftgate Capacity
Liftgate Capacity Icon

1600 & 2000 lbs.

Hydraulic System
Hydraulic System Icon

Single-Cylinder

Rail Style
Rail Style Icon

Padded Sliders

Railgate Series: Dock-Friendly Features

Dock-friendly platforms fold and can be lowered  in the vertical position to allow for easy dock or forklift loading.

Railgate Series: Dock-Friendly Overview Image A Railgate Series: Dock-Friendly Overview Image B
Drop-Away Function Image
Drop-Away Function

The "drop away" position allows for the liftgate platform to be easily moved out of the way of direct dock loading.

Above-Bed Travel Image
Above-Bed Travel

All "dock-friendly" model railgates come with standard above-bed capability, allowing the platform to rise above the liftgate mainframe to meet additional dock height.

  Steel-Frame Models for 102" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
95-16 RF 45-6 1600 95  x  45 6 32-54 697 A
95-16 RF 45-12 1600 95  x  45 12 32-54 711 A
95-16 RF 50-6 1600 95  x  50 6 32-54 717 A
95-20 RF 45-6 2000 95  x  45 6 32-54 697 A
95-20 RF 45-12 2000 95  x  45 12 32-54 711 A
95-20 RF 50-6 2000 95  x  50 6 32-54 717 A
  1. RF 95 models are only available in the steel frame option.

  Aluminum-Frame Models for 102" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
A89-16 RF 45-6 1600 89  x  45 6 32-54 557 A
A89-16 RF 45-12 1600 89  x  45 12 32-54 571 A
A89-16 RF 50-6 1600 89  x  50 6 32-54 577 A
A89-20 RF 45-6 2000 89  x  45 6 32-54 557 A
A89-20 RF 45-12 2000 89  x  45 12 32-54 571 A
A89-20 RF 50-6 2000 89  x  50 6 32-54 577 A
  1. All-Aluminum-Frame RF Railgate models are sized down due to the bolt-on mounting flanges.

  Steel-Frame Models for 96" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
89-16 RF 45-6 1600 89  x  45 6 32-54 674 B
89-16 RF 45-12 1600 89  x  45 12 32-54 688 B
89-16 RF 50-6 1600 89  x  50 6 32-54 695 B
89-20 RF 45-6 2000 89  x  45 6 32-54 674 B
89-20 RF 45-12 2000 89  x  45 12 32-54 688 B
89-20 RF 50-6 2000 89  x  50 6 32-54 695 B

  Aluminum-Frame Models for 96" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
A85-16 RF 45-6 1600 85  x  45 6 32-54 539 B
A85-16 RF 45-12 1600 85  x  45 12 32-54 553 B
A85-16 RF 50-6 1600 85  x  50 6 32-54 559 B
A85-20 RF 45-6 2000 85  x  45 6 32-54 539 B
A85-20 RF 45-12 2000 85  x  45 12 32-54 553 B
A85-20 RF 50-6 2000 85  x  50 6 32-54 559 B
  1. All-Aluminum-Frame RF Railgate models are sized down due to the bolt-on mounting flanges.

  Steel-Frame Models for 90" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
85-16 RF 45-6 1600 85  x  45 6 32-54 659 C
85-16 RF 45-12 1600 85  x  45 12 32-54 673 C
85-16 RF 50-6 1600 85  x  50 6 32-54 679 C
85-20 RF 45-6 2000 85  x  45 6 32-54 659 C
85-20 RF 45-12 2000 85  x  45 12 32-54 673 C
85-20 RF 50-6 2000 85  x  50 6 32-54 679 C

  Aluminum-Frame Models for 90" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
A79-16 RF 45-6 1600 79  x  45 6 32-54 -- C
A79-16 RF 45-12 1600 79  x  45 12 32-54 -- C
A79-16 RF 50-6 1600 79  x  50 6 32-54 -- C
A79-20 RF 45-6 2000 79  x  45 6 32-54 -- C
A79-20 RF 45-12 2000 79  x  45 12 32-54 -- C
A79-20 RF 50-6 2000 79  x  50 6 32-54 -- C
  1. All-Aluminum-Frame RF Railgate models are sized down due to the bolt-on mounting flanges.

  Steel-Frame Models for 85" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
79-16 RF 45-6 1600 79  x  45 6 32-54 -- D
79-16 RF 45-12 1600 79  x  45 12 32-54 -- D
79-16 RF 50-6 1600 79  x  50 6 32-54 -- D
79-20 RF 45-6 2000 79  x  45 6 32-54 -- D
79-20 RF 45-12 2000 79  x  45 12 32-54 -- D
79-20 RF 50-6 2000 79  x  50 6 32-54 -- D

  Aluminum-Frame Models for 85" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
A73-16 RF 45-6 1600 73  x  45 6 32-48 -- D
A73-16 RF 45-12 1600 73  x  45 12 32-48 -- D
A73-16 RF 50-6 1600 73  x  50 6 32-48 -- D
A73-20 RF 45-6 2000 73  x  45 6 32-48 -- D
A73-20 RF 45-12 2000 73  x  45 12 32-48 -- D
A73-20 RF 50-6 2000 73  x  50 6 32-48 -- D
  1. All-Aluminum-Frame RF Railgate models are sized down due to the bolt-on mounting flanges.

  Steel-Frame Models for 80" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
73-16 RF 45-6 1600 73  x  45 6 32-48 -- E
73-16 RF 45-12 1600 73  x  45 12 32-48 -- E
73-16 RF 50-6 1600 73  x  50 6 32-48 -- E
73-20 RF 45-6 2000 73  x  45 6 32-48 -- E
73-20 RF 45-12 2000 73  x  45 12 32-48 -- E
73-20 RF 50-6 2000 73  x  50 6 32-48 -- E

  Applications & Brackets - Flatbed and Van → Railgate Series: Dock-Friendly

Code Body Style
A 102" Wide Bodies
B 96" Wide Bodies
C 90" Wide Bodies
D 85" Wide Bodies
E 80" Wide Bodies

 Available Platforms

RF 45-6

Two-piece Extruded Aluminum w/ 45" loading depth (15" flipper) + 6" taper (30" base height)

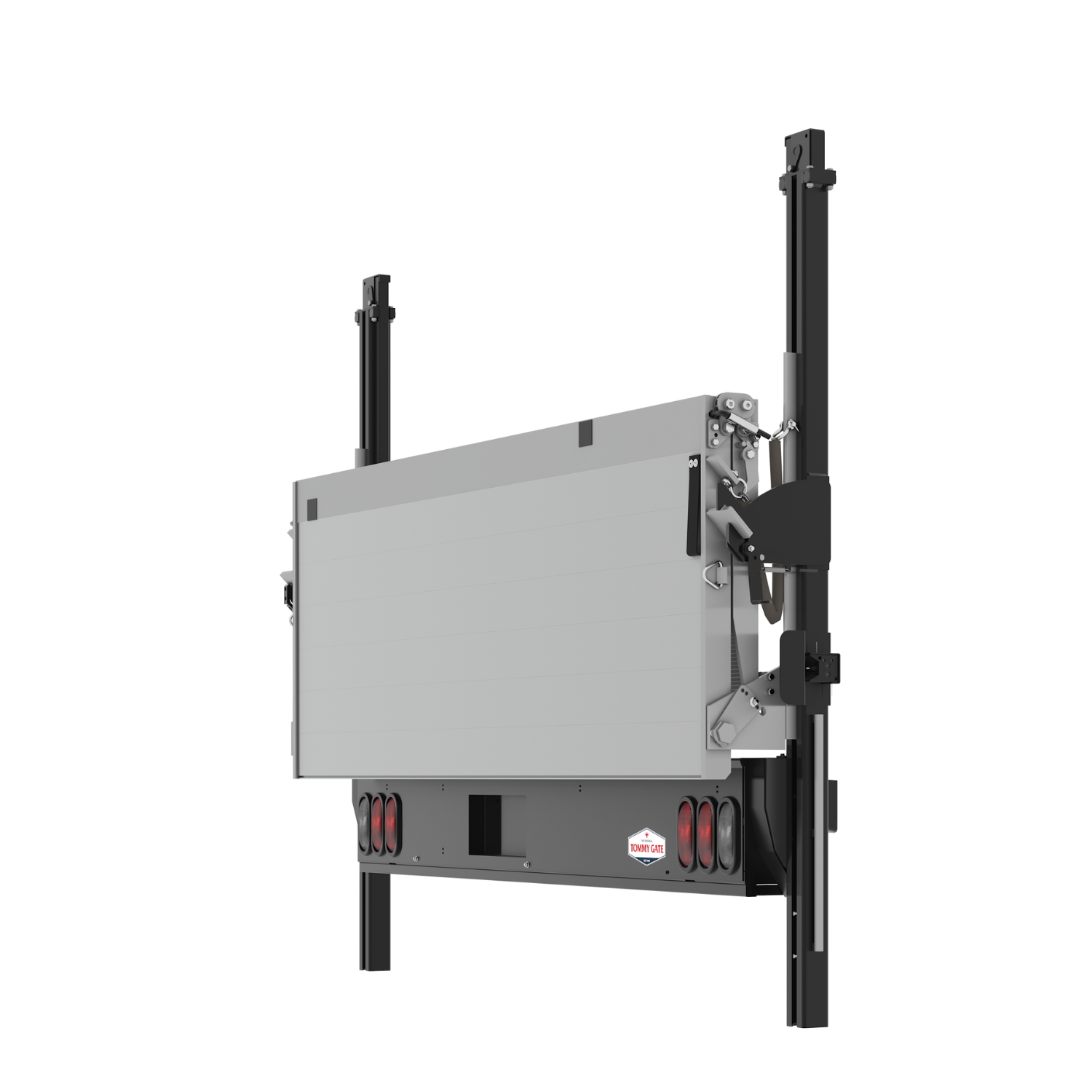

Railgate Series: Dock-Friendly RF 45-6 Open Railgate Series: Dock-Friendly RF 45-6 Closed
RF 45-12

Two-piece Extruded Aluminum w/ 45" loading depth (10" flipper) + 12" taper (35" base height)

Railgate Series: Dock-Friendly RF 45-12 Open Railgate Series: Dock-Friendly RF 45-12 Closed
RF 50-6

Two-piece Extruded Aluminum w/ 50" loading depth (15" flipper) + 6" taper (35" base height)

Railgate Series: Dock-Friendly RF 50-6 Open Railgate Series: Dock-Friendly RF 50-6 Closed

  Standard Features

Low-profile, Fixed Toggle Control Image
Low-profile, Fixed Toggle Control

a low-profile control with five-minute inactivity shut-off

Power Cable w/ Full Length Ground Image
Power Cable w/ Full Length Ground

ensures consistent power supply

150-amp Circuit Breaker Image
150-amp Circuit Breaker

protects vehicle's electrical system, disconnects power for repairs

Recessed LED Light Kit Image
Recessed LED Light Kit

3-light kit (two red, one white each side)

Safety Trip Bar Image
Safety Trip Bar

disengages the lift when an object is detected between the rising platform and the liftgate mainframe

Above-bed Travel Image
Above-bed Travel

allows platform to travel above truck bed-height for dock loading

Torsion Bar Image
Torsion Bar

aids in manually opening/closing the platform

  Available Options

Dual Controls Image
Dual Controls

low-profile, fixed control + remote pendant control

Remote Pendant Control Mounting Kit Image
Remote Pendant Control Mounting Kit

bracket and hook to store pendant control inside the vehicle (pendant sold separately)

Rubber Platform Bumpers Image
Rubber Platform Bumpers

set of four or six, depending on platform

Split Cart Stops Image
Split Cart Stops

located in platform taper, secures wheeled cargo

Auxiliary Battery Box Image
Auxiliary Battery Box

provides adequate power on longer straight truck and trailer applications

In-cab, Shut-off Switch Image
In-cab, Shut-off Switch

enables power to be disabled from within the truck cab

1. For optional Auxiliary Battery Box components, dimensions, and details, see document.

Documents

  Railgate Series: Dock-Friendly

Document Name Size Download
Railgate Series Owner's Manual 1097kb
Warranty Guidelines 506kb
Flatbed, Stake, & Van - Railgate Series - Standard Parts List 400kb
Flatbed/Van - Railgate Series - Dock-Friendly Dimensions 244kb
Estimated Installation Times 452kb
Railgate Series Wiring Instructions 62kb
Electrical Guidelines 14kb
1600 & 2000lb-Capacity Railgate Installation Instructions 4702kb
Railgate Torsion Assist Repair Instructions 1340kb
Auxiliary Battery Box Selection Guide 3098kb
Auxiliary Battery Box Instructions 3790kb
Auxiliary Battery Box (Charge Line) Instructions 850kb
In-cab Cut-off Switch Instructions 595kb
Tommy Gate Liftgate Guide 9133kb
