High-Cycle Gas Bottle Railgate

High-Cycle Gas Bottle Rack models incorporate the "High-Cycle" drive system and feature folding, gas bottle rack platforms. Ideal for gas cylinder transporters, these liftgates support higher lifting capacities and feature a platform drop-down function allowing work vehicles to load and unload in any manner at any location.

Hydraulic System
Hydraulic System Icon

Single-Cylinder

Rail Style
Rail Style Icon

Steel Rollers

Liftgate Capacity
Liftgate Capacity Icon

2500 & 3000 lbs.

Railgate Series: High-Cycle GBR Features

  • High-Cycle durability
  • Low-profile, fixed toggle control
  • Self-close system
  • Dock compatible
Railgate Series: High-Cycle GBR Overview Image A Railgate Series: High-Cycle GBR Overview Image B
Drop-away Position Image
Drop-away Position

In the drop-away position, High-Cycle GBR Railgate platforms rest at bed height, allowing seamless dock compatibility.

Low-profile Control Image
Low-profile Control

The Low-Profile Control, a standard feature on all High-Cycle Railgates, includes an inactivity shut-off to guard against unauthorized use.

  Models for 96" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
89-25 GBR30 2500 82  x  30 12 38-54 1050 B
89-30 GBR30 3000 82  x  30 12 38-54 1050 B
89-25 GBR42 2500 82  x  42 15 38-54 1150 B
89-30 GBR42 3000 82  x  42 15 38-54 1150 B

1.  Minimum bed height range is laden. Maximum bed height range is unladen.

  Models for 102" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
95-25 GBR30 2500 88  x  30 12 38-54 1085 A
95-30 GBR30 3000 88  x  30 12 38-54 1085 A
95-25 GBR42 2500 88  x  42 15 38-54 1190 A
95-30 GBR42 3000 88  x  42 15 38-54 1190 A

1.  Minimum bed height range is laden. Maximum bed height range is unladen.

  Applications & Brackets - Flatbed and Van → Railgate Series: High-Cycle GBR

Code Body Style
A 102" Wide Bodies
B 96" Wide Bodies

 Available Platforms

GBR30

One-piece Steel Treadplate w/ 30" loading depth + 12" taper and Gas Bottle Rack

Railgate Series: High-Cycle GBR GBR30 Open Railgate Series: High-Cycle GBR GBR30 Closed
GBR42

One-piece Steel Treadplate w/ 42" loading depth + 15" taper and Gas Bottle Rack

Railgate Series: High-Cycle GBR GBR42 Open Railgate Series: High-Cycle GBR GBR42 Closed

  Standard Features

Low-profile, Fixed Toggle Control Image
Low-profile, Fixed Toggle Control

a low-profile control with five-minute inactivity shut-off

Recessed Light Kit Image

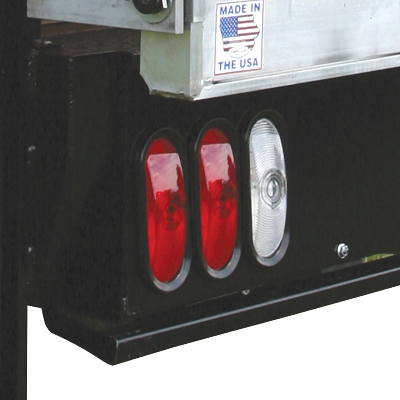

Recessed Light Kit

3-light kit (two red, one white each side)

Safety Trip Bar Image
Safety Trip Bar

disengages the lift when an object is detected between the rising platform and the liftgate mainframe

Self-close System Image
Self-close System

cam-arm system opens/closes the platform automatically

Steel Rollers Image
Steel Rollers

travel vertically within the rail track

  Available Options

Recessed LED Light Kit Image
Recessed LED Light Kit

3-light kit (two red, one white each side)

Dual Controls Image
Dual Controls

standard fixed control + remote pendant control

Auxiliary Battery Box Image
Auxiliary Battery Box

provides adequate power on longer straight truck and trailer applications

In-cab, Shut-off Switch Image
In-cab, Shut-off Switch

enables power to be disabled from within the truck cab

1. For optional Auxiliary Battery Box components, dimensions, and details, see document.

Documents

  Railgate Series: High-Cycle GBR

Document Name Size Download
Railgate Series - High-Cycle GBR Owner's Manual 1227kb
2500 & 3000lb-Capacity Railgate Installation Instructions 4312kb
Railgate Series - High-Cycle 42" GBR Flyer 966kb
Railgate Series - High-Cycle 30" GBR Flyer 966kb
Flatbed/Van - Railgate Series - High-Cycle GBR Dimensions 250kb
Auxiliary Battery Box Selection Guide 3098kb
Auxiliary Battery Box Instructions 3790kb
Auxiliary Battery Box (Charge Line) Instructions 850kb
Warranty Guidelines 506kb
In-cab Cut-off Switch Instructions 595kb
Tommy Gate Liftgate Guide 9133kb
Lid Guard Installation Instructions 3790kb

  Product Videos|    View all Product Videos

Railgate Series - 42-inch GBR Model
Safety Trip Bar Demonstration
Dock-Friendly "Drop Away" Demonstration
Factory Montage

  From the Photo Archive|    Visit the Photo Archive

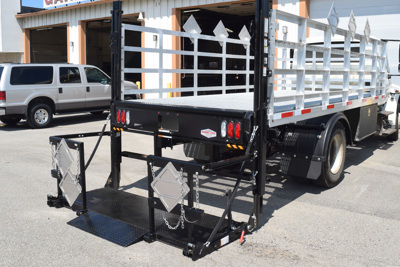

A Tommy Gate High-Cycle Gas Bottle Rack Railgate on a stake body work truck A Tommy Gate High-Cycle Gas Bottle Rack Railgate in the "drop down" position. A stake truck with Tommy Gate High-Cycle Gas Bottle Railgate in the stored position. Railgate Liftgate - 42" High-Cycle GBR Tommy Gate 42-inch High-Cycle GBR Railgate Railgate Liftgate - 42" High-Cycle GBR 42" High-Cycle Gab Bottle Railgate 42" High-Cycle Gab Bottle Railgate in drop-away position 42" High-Cycle Gab Bottle Railgate

  Related Blog Posts|    Visit Liftgate Central

A Straight Truck with Tommy Gate Liftgate
What Makes a Railgate a "High-Cycle" Railgate?

The defining traits of frequently-cycling railgates. Read More

A Tommy Gate High-Cycle Gas Bottle Railgate on a Stake Truck
New High-Cycle Gas Bottle Rack Railgates

Tommy Gate is pleased to announce the availability of new, High-Cycle, Gas Bottle Rack Railgate models. Read More

A Straight Truck with Tommy Gate Railgate

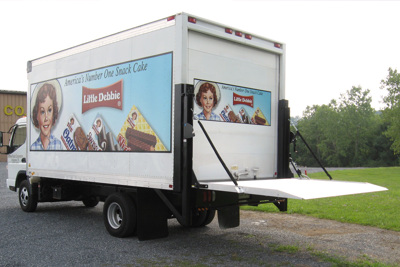

Liftgates for Flatbeds & Box Trucks: What to Know
