Railgate Series: High-Cycle

Arrow Image
Flatbed and Van - Railgate Series: High-Cycle Icon

Flatbed and Van - Railgate Series: High-Cycle

Flatbed and Van - Railgate Series: High-Cycle Primary Image

High-Cycle Railgate Models

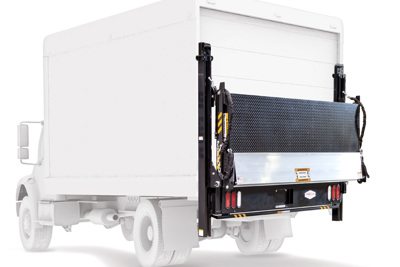

High-cycle models apply a steel roller and leaf-chain pulley system to maximize smoothness of motion, endurance, and strength. This medium-duty railgate is ideal for high-cycle applications in any environment. These lifts are built with the highest quality components and place a priority on function and safety.

Liftgate Capacity
Liftgate Capacity Icon

2500 & 3000 lbs.

Rail Style
Rail Style Icon

Steel Rollers

Hydraulic System
Hydraulic System Icon

Single-Cylinder

Railgate Series: High-Cycle Features

  • High-Cycle durability
  • Higher lifting capacities
  • Larger platforms
  • Dock compatible
Railgate Series: High-Cycle Overview Image A Railgate Series: High-Cycle Overview Image B
Rollers Image
Rollers

Steel rollers guide the platform vertically within the rail track and are designed to withstand intensive cycling. Dual sealed, maintenance-free ball bearings ensure the rollers are long-lasting and perform consistently in all climate conditions.

Safety Image
Safety

High-cycle railgates come standard with safety trip bar, auto open and close, and recessed lights. Taper-integrated cart stops are optional on extruded-aluminum platform models.

  Models for 96" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
89-25 TP36 2500 89  x  36 12 32-54 1040 B
89-25 TP42 2500 89  x  42 12 32-54 1094 B
89-25 TP48 2500 89  x  48 12 32-54 1147 B
89-25 EA55 2500 89  x  55 12 32-54 968 B
89-30 TP36 3000 89  x  36 12 32-54 1040 B
89-30 TP42 3000 89  x  42 12 32-54 1094 B
89-30 TP48 3000 89  x  48 12 32-54 1147 B
89-30 EA55 3000 89  x  55 12 32-54 968 B

  Models for 102" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
95-25 TP36 2500 95  x  36 12 32-54 1065 A
95-25 TP42 2500 95  x  42 12 32-54 1121 A
95-25 TP48 2500 95  x  48 12 32-54 1178 A
95-25 EA55 2500 95  x  55 12 32-54 987 A
95-30 TP36 3000 95  x  36 12 32-54 1065 A
95-30 TP42 3000 95  x  42 12 32-54 1121 A
95-30 TP48 3000 95  x  48 12 32-54 1178 A
95-30 EA55 3000 95  x  55 12 32-54 987 A

...

  Models for 90" Wide Bodies

Model Capacity Load Area Taper Travel Weight Applications Spec
85-25 TP36 2500 85  x  36 12 32-54 1024 C
85-25 TP42 2500 85  x  42 12 32-54 1075 C
85-25 TP48 2500 85  x  48 12 32-54 1126 C
85-25 EA55 2500 85  x  55 12 32-54 955 C
85-30 TP36 3000 85  x  36 12 32-54 1024 C
85-30 TP42 3000 85  x  42 12 32-54 1075 C
85-30 TP48 3000 85  x  48 12 32-54 1126 C
85-30 EA55 3000 85  x  55 12 32-54 955 C
Show Additional Models

  Applications & Order Codes - Flatbed and Van → Railgate Series: High-Cycle

Code Body Style
A 102" Wide Bodies
B 96" Wide Bodies
C 90" Wide Bodies

 Available Platforms

TP36

1-piece treadplate steel w/ 36" loading depth + 12" taper

Railgate Series: High-Cycle TP36 Open Railgate Series: High-Cycle TP36 Closed
TP42

1-piece treadplate steel w/ 42" loading depth + 12" taper

Railgate Series: High-Cycle TP42 Open Railgate Series: High-Cycle TP42 Closed
TP48

1-piece treadplate steel w/ 48" loading depth + 12" taper

Railgate Series: High-Cycle TP48 Open Railgate Series: High-Cycle TP48 Closed
EA55

1-piece extruded aluminum w/ 55" loading depth + 12" taper

Railgate Series: High-Cycle EA55 Open Railgate Series: High-Cycle EA55 Closed

  Standard Features

Low-profile, Fixed Toggle Control Image
Low-profile, Fixed Toggle Control

a low-profile control with five-minute inactivity shut-off

Power Cable w/ Full Length Ground Image
Power Cable w/ Full Length Ground

ensures consistent power supply

150-amp Circuit Breaker Image
150-amp Circuit Breaker

protects vehicle's electrical system, disconnects power for repairs

Recessed LED Light Kit Image
Recessed LED Light Kit

3-light kit (two red, one white each side)

Safety Trip Bar Image
Safety Trip Bar

disengages the lift when an object is detected between the rising platform and the liftgate mainframe

Self-close System Image
Self-close System

cam-arm system opens/closes the platform automatically

Steel Rollers Image
Steel Rollers

travel vertically within the rail track

12" Platform Taper Image
12" Platform Taper

one-piece taper for steel treadplate & extruded aluminum platforms

  Available Options

Railgate Mounting Component Kit Image
Railgate Mounting Component Kit

A Component kit to reinforce a Tommy Gate Railgate Installation on a flatbed or stake body.

Rubber Platform Bumpers Image
Rubber Platform Bumpers

set of four or six, depending on platform

Above-bed Travel Image
Above-bed Travel

allows platform to travel above truck bed-height for dock loading

Split Cart Stops Image
Split Cart Stops

located in platform taper, secures wheeled cargo

Auxiliary Battery Box Image
Auxiliary Battery Box

provides adequate power on longer straight truck and trailer applications

5" Aluminum Extrusion Image
5" Aluminum Extrusion

Extruded aluminum platforms are available in any depth, 35" - 70", in 5" increments.

Dual Controls Image
Dual Controls

low-profile, fixed control + remote pendant control

Remote Pendant Control Mounting Kit Image
Remote Pendant Control Mounting Kit

bracket and hook to store pendant control inside the vehicle (pendant sold separately)

In-cab, Shut-off Switch Image
In-cab, Shut-off Switch

enables power to be disabled from within the truck cab

1. For optional Auxiliary Battery Box components, dimensions, and details, see document.

Documents for Railgate Series: High-Cycle

  Product

Owner's Manuals Size Download
Railgate Series - High-Cycle Owner's Manual 913kb
Warranty Documentation Size Download
Warranty Guidelines 506kb
Parts Lists Size Download
Flatbed, Stake, & Van - Railgate Series - High-Cycle Parts List 291kb
Other Documents Size Download
Railgate Mounting Component Kit 758 KB
Auxiliary Battery Box Selection Guide 3098kb
Auxiliary Battery Box Option 1347kb

  Installation

General Size Download
Estimated Installation Times 452kb
Wiring Instructions Size Download
Railgate Series Wiring Instructions 62kb
Railgate Installation Instructions Size Download
2500 & 3000lb-Capacity Railgate Installation Instructions 4312kb
Repair Instructions Size Download
Removable Cart Stop Replacement (in Taper) 5982kb
Optional Equipment Instructions Size Download
Auxiliary Battery Box Instructions 3790kb
Auxiliary Battery Box (Charge Line) Instructions 850kb
In-cab Cut-off Switch Instructions 595kb
Lid Guard Installation Instructions 3790kb

  Dimensions

Detailed Dimensions Size Download
Flatbed/Van - Railgate Series - High-Cycle Dimensions 234kb

  Brochures

Full-line Catalogs Size Download
Tommy Gate Liftgate Guide 9133kb
New Products Size Download
Railgate Series - Bi-Fold, High-Cycle Brochure 945kb

  Product Videos|    View all Product Videos

High-Cycle Railgate - Full Animation with rollers
Railgate Series - High-Cycle Models Operation
Safety Trip Bar Demonstration
Cart Stop Operation
Factory Montage
